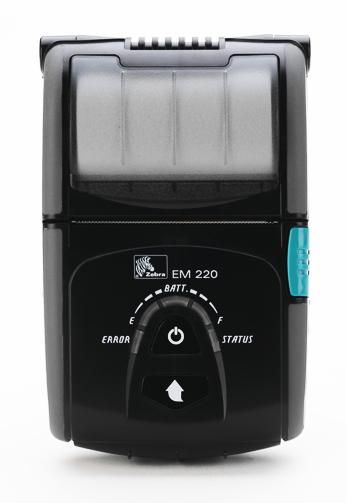

Zebra EM 220

Standard Features

• Print method: Direct thermal
• 2 MB Flash, 8 MB RAM
• Standard Serial and USB interfaces

More Standard Features

• Optional magnetic card reader
• Optional Bluetooth® v.2.0
• Windows® compatibility
• Different-color LEDs indicate on/off, error, connectivity status and battery life
• Single push-button media access for simple reloading
• Translucent media cover for media-low/-out anticipation
• Sensors: Door ajar, out of paper, pre-printed media alignment
• Designed with rubber overmolding to resist damage from daily wear and tear and repeated drops up to 4 feet

Printer Specifications

Resolution: 203 dpi (8 dots/mm)

Memory

• 2 MB Flash
• 8 MB RAM


Print width: 2.28" / 58.0 mm
Print length: Continuous
Print speed: 3" (76 mm)/sec
Media sensors: Reflective

Optional Features

• BT
• Card readers

Media Characteristics

Media width: 2.28" " (58.0  mm) x 2.28" " (58.0  mm)
Maximum roll diameter: 1.57" / 39.9 mm
Core diameter: .69" / 17.5 mm
Media thickness: 4 mil / 0.1016 mm
Media types: continuous receipt, receipt

Operating Characteristics

Operating temperature DT: 14° F (-10° C) to 122° F (50° C)
Direct thermal Storage temperatures: 14° F (-10° C) to 122° F (50° C)
Operating humidity: 20% to 70%
Storage humidity: 20% to 70%
Li-Ion battery
1.2 Ah
7.4V

Agency approvals

• Europe: CE Mark: CE 0984, DEMKO GS: EN60950-1: 2001
• North America: FCC rules part 15C
• NRTL Safety Approval IEC60950-1:2001 USB 2.0
• CB-scheme: IEC60950-1: 2001 CE Mark, EMC Directive 2004/108/EC, R&TTE Directive 95/5/EC, Radio Spectrum EN300328 v1.6.1
• Low Voltage Directive 2006/95/EC Safety: EN60950-1:2001
• UL, FCC, CE, GS, CCC, SRRC, NCC, CB, GOST-R, TELEC, SIG, PSI, C-Tick, OFTA, VCCI

Physical Characteristics

Width: 79.5 mm
Height: 5.0" " (126.7 mm mm)
Depth: 1.7"" (43.6 mm mm)
Weight: .52 lbs (.25 kg)
Shipping weight: 2.3 lbs (1.04 kg)

Related Products

Options: 3-track Magnetic card reader

Communication and Interface Capabilities

• Serial/USB 2.0
• Optional: Bluetooth

Bar Codes/Symbologies

Linear Codabar
UPC-A
UPC-E
Code 39
Code 93
Code 128
EAN-8
EAN-13
EAN-18
2-dimensional PDF417
MaxiCode
QR Code
Data Matrix

Fonts and Graphics

• Supports international character sets
• Supports vertical or horizontal printing
